DLaTGS – The Next Detector Generation

DLaTGS – The Gold Standard for FTIR Spectroscopy
The combination of high pyroelectric coefficient, low heat capacity and low relative permittivity meets all requirements for achieving very good signal-to-noise ratios at very high modulation frequencies. Thus, the DLaTGS detectors of the PYRONEER series offer triple detectivity (D*), making them clearly superior to LiTaO₃ detectors at modulation frequencies in the kHz range. They are real performance boosters and are considered the gold standard among infrared detectors in Fourier transform infrared spectrometers (FTIR). In combination with the particularly thin black precious metal layer, they are unmatched in terms of performance and offer a uniformly high detector sensitivity across the entire spectral range.

InfraTec Launches the PYRONEER Series

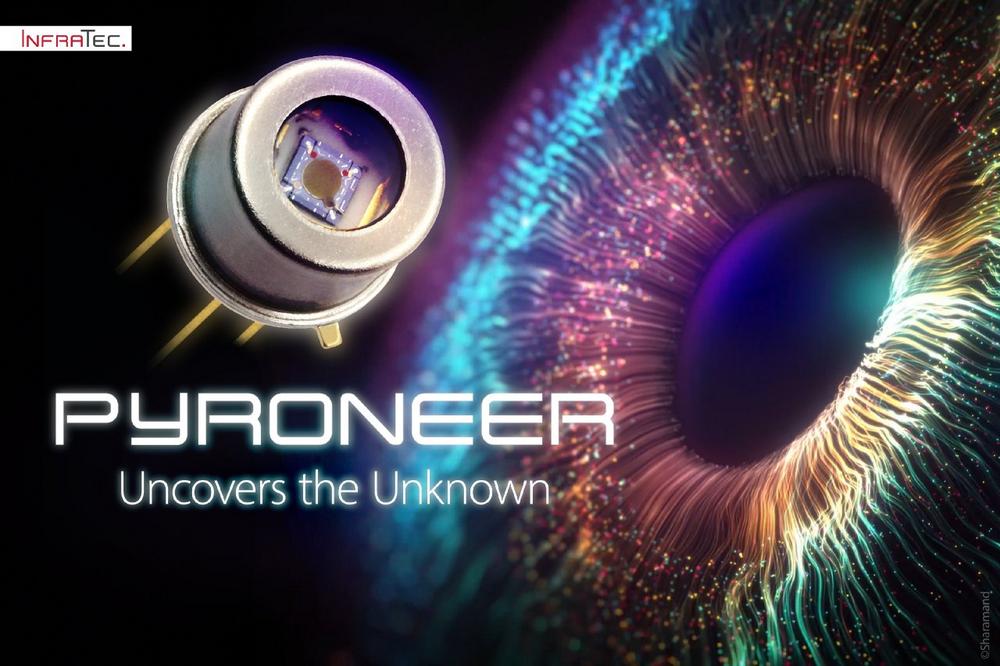

The high-performance detector DSV-7311 will be the first detector based on DLaTGS and the forerunner of the new “PYRONEER” product series. The single channel detector in the TO39 housing features a pyroelectric element with a diameter of 1.3 mm and a low-noise junction field effect transistor (JFET). Also, it is operated in voltage mode. Offering a specific detectivity (D*) of ~3.0 Jones at 1 kHz, a fast and reliable thermal time constant and a 110° field of view (FOV), the specifications of the DSV-7311 are exceptionally good for a detector of this size.

One-stop Solution
The production process for DLaTGS detectors starts with growing the sensitive DLaTGS crystal material at the company’s headquarters in Dresden. All subsequent steps such as sawing the wafers from the crystal material, thinning, applying the contact electrodes and vapor deposition of the metal black layer are also in-house processes. Thanks to its modular design, the Pyroneer series can be flexibly adapted to your application-specific requirements.
