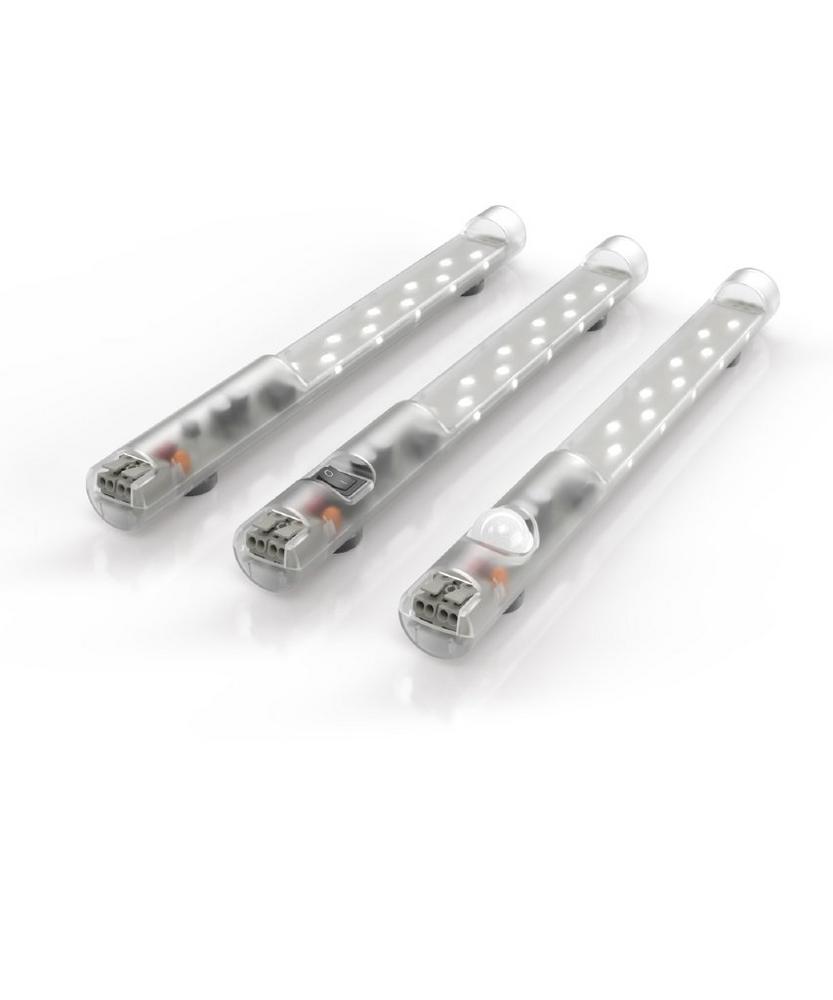

Light is not only a matter of comfort when working in enclosures; it is primarily a crucial aspect of safety. Integrated lighting often provides the best solution. However, varying voltages and current types require different lighting solutions, increasing planning efforts and procurement tasks. STEGO Elektrotechnik introduces the LED 025 M enclosure light, a multi-wide voltage solution for various applications, making optimal illumination and logistics straightforward and flexible.

Designed for a Wide Range of Applications

The available voltage in an enclosure can vary significantly. Therefore, the LED 025 M operates on multi-wide voltage AC/DC ranging from 24 to 240 V (minimum 20V, maximum 265V) and frequencies of 0/50/60 Hertz, consuming 4.5 W. It emits 560 lumens with a beam angle of 120°. The LED 025 M can be used in temperatures from -40 °C to 60 °C and up to 90% relative humidity. Its protection class is IP20/II, making it perfectly suited for use in enclosures, and it is certified according to CE, UKCA, EAC, UL, VDE, CCC, and ROHS.

Light for Safe and Comfortable Work

Insufficient lighting is perhaps the most common reason why cables in control systems are confused or not connected properly. With its glare-free, daylight white illumination at 6,000 – 7,000 K, the LED 025 M creates the ideal conditions for error-free work. It can be switched on as needed via a traditional toggle switch. Additionally, there are versions that automatically turn on and off using motion sensors—perfect for ensuring the light comes on automatically when the enclosure door is opened.

Easy and Quick Installation

Enclosures can vary widely, and so can their mounting options. The LED 025 M comes with a mounting kit for magnetic, screw, and clip installations. Thanks to its internal power supply and the availability of pre-assembled connection and extension cables, the electrical connection is straightforward. Through pass-through wiring, it is also possible to operate up to 10 lights together. Even though installation is quick and easy, it’s always better not to have to replace the lighting. Therefore, the LED 025 M is designed for a lifespan of 60,000 operating hours.

For more information about the LED 025 M, all variants, complete accessories, and complementary products, visit stego-group.com/products/led-025-m

Über STEGO UK LTD.

The STEGO Group manufactures and distributes an ever-growing range of products for the protection of electrical and electronic components. Enclosure heaters, filter fans, LED lights, thermostats, hygrostats, sensors, and accessories ensure optimized climatic conditions in various environments, guaranteeing the reliable operation of sensitive components over the long term.

www.stego-group.com
